• 4 Buttons Hoist Switches Features:





  1 .Taiwan ITS is the CE / ISO qualified hoist pendant control supplier.



  2 . ITS pendant controls keep very competitive price but it still having long service life.



  3 .ITS pendant controls are high mechanical strength, shock resistant, reasonable structure, safe and reliable.



  4 .Contact uses Taiwan made silver contactor, not only can endure high current also good conductivity.



  5 . ITS controls are providing with unique mechanical interlock and circuit interlock design, which can help prevent short-circuit and ensure safety.



  6 .Taiwan ITS pendant control can be customized with emergency stop button, Indicator lamp(red), on/off push button switch, twist button, or key switch etc.







  4 Buttons Electric Hoist Control Structure:



  1 .. ITS control protective function reaches Grade IP54.



  2 .The ABS resin housing provides good insulation and with rubber protective casings.



  3 . Model COB 21, COB22, COB23 (Direct Operation) silver contactors are huger than other models, so it can control three phases motor directly. ( COB 213 for single phase motor only)



  4 .Model COB 213A (Direct Operation) is specially used for DC current motor directly.







  4 Buttons Hoist Switches





  4 Buttons Hoist Switches





  Model	Name	Type	Buttons	Button Function
  				Operate		Directional Keys
  						UP	DOWN	EAST	WEST	SOUTH	NORTH

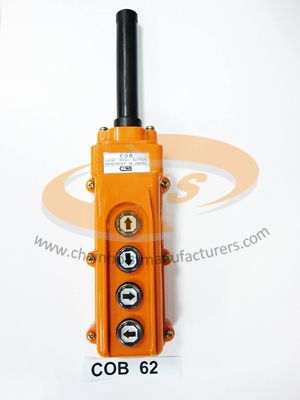

  CH0062	COB62	Indirect	4	-	-	S	S	S	S	-	-
  CH0022	COB22	Direct	4	-	-	S	S	S	S	-	-
  CH0002	COB122	Multi-functional	4	-	-	S	S	S	S	-	-
  CH0003	COB122-1	Multi-functional	4	-	-	D	D	S	S	-	-
  CH0004	COB122N	Multi-functional	4	ON	OFF	S	S	-	-	-	-
  CH0005	COB122-2	Multi-functional	4	-	-	D	D	D	D	-	-
  CH0004-1	COB122S	Multi-functional	4	EMS	C	S	S	-	-	-	-
  CH0004-2	COB122N-2	Multi-functional	4	-	-	S	S	-	-	S	C
  -	COB122SK	Multi-functional	4	KEY	EMS	S	S	-	-	-	-

  4 Buttons Hoist Switches

  Remark. S: Single Speed (1-step), D: Dual Speed (2-step)

  ON/ Off: Power On/ Power Off

  EMS: Emergency Stop Button- Red mushroom type or Normal type

  C: Choice ( ON/OFF Push Button Switch, Emergency Stop Button- Red mushroom type or Normal type, Red Indicator

  Lamp, Twist Button, Key Switch, or no action etc.)

  Above is our standard model, and all of our ITS pendant controls can be customized by buyer.
