Bus Bar System

INQUIRYBACK


Country of origin: Taiwan



Product Type: Bus Bar



Conductor Material: Copper/Stainless Steel



Insulator Material: Aluminum



Power Supply: 600V



Rail Rated Current: 320A/500A



Collector Rated Current: 100A/200A

  •













    1. W Bus Bar 320A/ 500A: Bus Bar System





    Model Description
    CH7002-2 W Bus Bar 320A (Copper+ Aluminum Material- 4MTRS/ 4 Phase M)
    CH7003 W Bus Bar 320A (Stainless Steel+ Aluminum Material- 4MTRS/ 4 Phase M)
    CH7501-2 W Bus Bar 500A (Stainless Steel+ Aluminum Material- 4MTRS/ 4 Phase M)












    2. W Hanger: Bus Bar System







    Model Description
    CH7020 W Hanger (320A)
    CH7502 W Hanger (500A)










    3. W Connector+ Connector Cover: Bus Bar System







    Model Description
    CH7030 W Connector+ Connector Cover (320A)
    CH7503 W Connector+ Connector Cover (500A)












    4. W Power Feed Cover: Bus Bar System





    Model Description
    CH7008 W Power Feed Cover (320A)
    CH7508 W Power Feed Cover (500A)












    5. W End Cap: Bus Bar Systems





    Model Description
    CH7070 W End Cap (320A)
    CH7506 W End Cap (500A)










    6. W Anchor Clamp: Bus Bar System





    Model Description
    CH7090 W Anchor Clamp (320A)
    CH7507 W Anchor Clamp (500A)










    7. W Collector: Bus Bar System





    Model Description
    CH7040 W 100A Collector (320A)
    CH7504 W 200A Collector (500A)
















    8. W 100A Carbon Brush: Bus Bar System





    Model Description
    CH7050 W 100A Carbon Brush (320A)
    CH7550 W 200A Carbon Brush (500A)












    9. W Carbon Brush+ Cover+ Cable: Bus Bar System





    Model Description
    CH7050-1 W 100A Carbon Brush+ Cover+ Cable (320A)
    CH7504-2 W 200A Carbon Brush+ Cover+ Cable (500A)

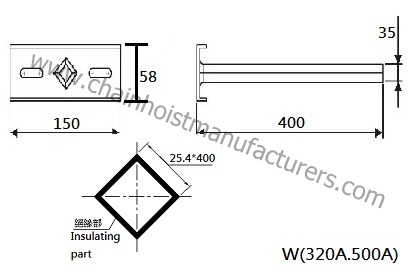

    10. W Fixed Rod: Bus Bar System





    Model Description
    CH7060 W Fixed Rod (25.4*400mm- Big Size)





    D
